Interconnect Products

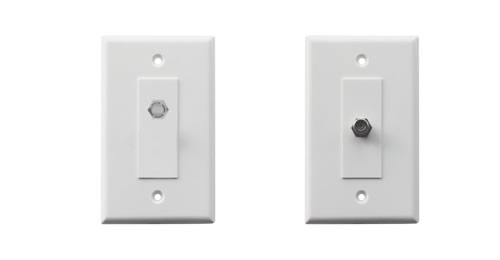

CWP Series Wall Plates
Description:
These precision-cut wall plates are designed for effective cable TV management and satellite applications. They are available with one hole at center or one offset.
Features:
- Mounted TV standard wall plates
- High-impact ABS plastic
- Machine milled smooth finish
- Supplied with mounting screws
- Color available in white and ivory
- 4.5 in/11.5cm (L) x 2.75in/7.0cm (W)
F-81 Series Connector
Description:
Accutek offers a full line of F-81 coaxial splice adaptors for cable TV, telecom, and satellite industries. A range of contact and body configurations will meet almost any applications from economical to critical data networks. The advanced features provide lowest insertion loss and highest return loss, enhanced holding force, consistent performance, and high reliability.
Features:
- DC-3000MHz bandwidth performance
- High quality brass body with a triple nickel finish
- Beryllium copper with 24k gold plating center contact
- 180 degree or 360 degree contact availability
- Precision machined threads
- High holding force
- Flat port ends
- Excellent insertion & return loss
- Fully SCTE compliant
3GHz High Pass Filter
Description:
These high performance high pass filters exhibit minimal loss within the pass band while reject maximum signals from below the cut off frequency stop band. They require no external components or adjustments.
Features:
- High return loss
- Low harmonic distortion
- Plug-in ready to use,
- Factory tuned frequency or customer specified
3GHz 75Ohm Attenuator
Description:
These attenuators are designed to precisely reduce the amplitude or power of a signal without distorting its waveform. Their excellent return loss (Low VSWR) makes them an ideal attenuator for head-end applications.
Features:
- DC-3000MHz bandwidth performance
- Low VSWR
- Very flat frequency-response
- High attenuation tolerance
- Return loss greater than 22 dB at 1000 MHz and 16 dB at 3000 MHz
- Available in 1, 3, 6, and 10 dB value steps
- Stainless steel or brass with bright alloy finish
- “F” connectors (male to female)
- Other connector combination available
